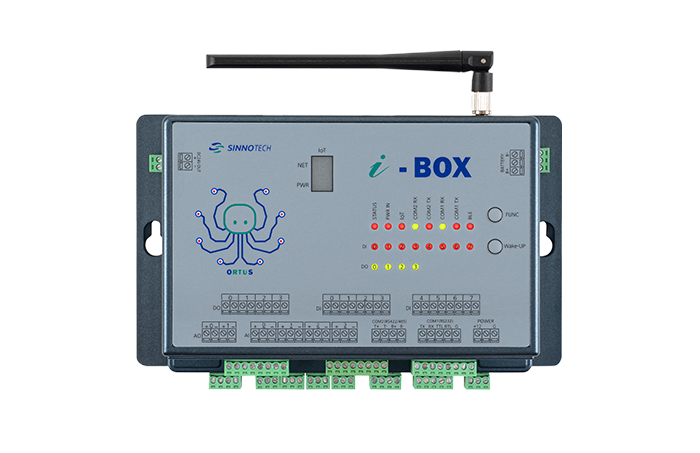

Solar-Powered Low-Power IoT
SMF-IR200
Function
• Built-in IoT Modem: LTE-Cat.M1 or LTE-Cat4
• Power Consumption: Less than 50W/day (RTU + Modem)
• Data Logging & Recovery Support
• Equipped with Modbus Communication Driver
• Modem Side: Modbus-TCP Master & Slave
• Serial Side: Modbus-RTU Master
• Smart Device Monitoring App Provided as Standard
• Communication Frame Monitoring
• Modbus Mode Setting: Always On/Sleep
• Real-time Monitoring of Measurement Data
• Log Data Search and Retrieval
• Communication Parameter Settings
• Supports Android 7.0 and above
• Built-in Li-ion BAT Charger and Cell Balancing Function
• Power Consumption: Less than 50W/day (RTU + Modem)
• Data Logging & Recovery Support
• Equipped with Modbus Communication Driver
• Modem Side: Modbus-TCP Master & Slave
• Serial Side: Modbus-RTU Master
• Smart Device Monitoring App Provided as Standard
• Communication Frame Monitoring
• Modbus Mode Setting: Always On/Sleep
• Real-time Monitoring of Measurement Data
• Log Data Search and Retrieval
• Communication Parameter Settings
• Supports Android 7.0 and above
• Built-in Li-ion BAT Charger and Cell Balancing Function

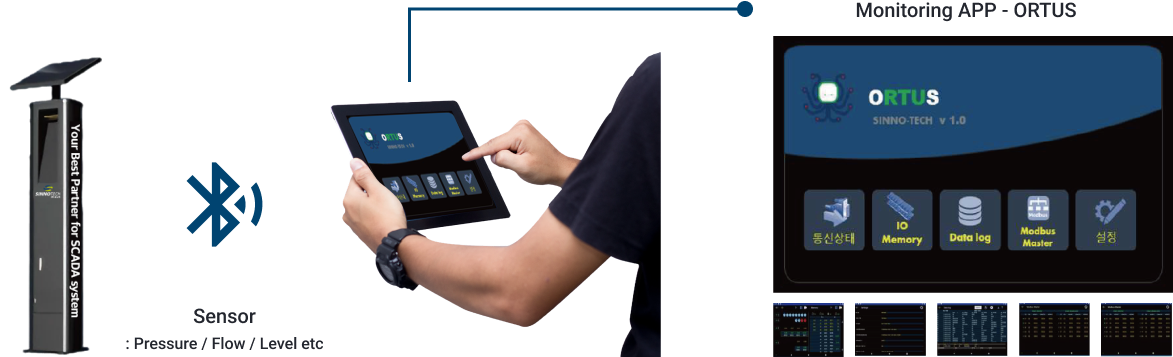

Easily monitor using SINNOTECH's monitoring app ORTUS. ORTUS maximizes work efficiency with an intuitive user interface and real-time data access, enabling swift and accurate decision-making. Effectively monitor system status and identify issues with ORTU

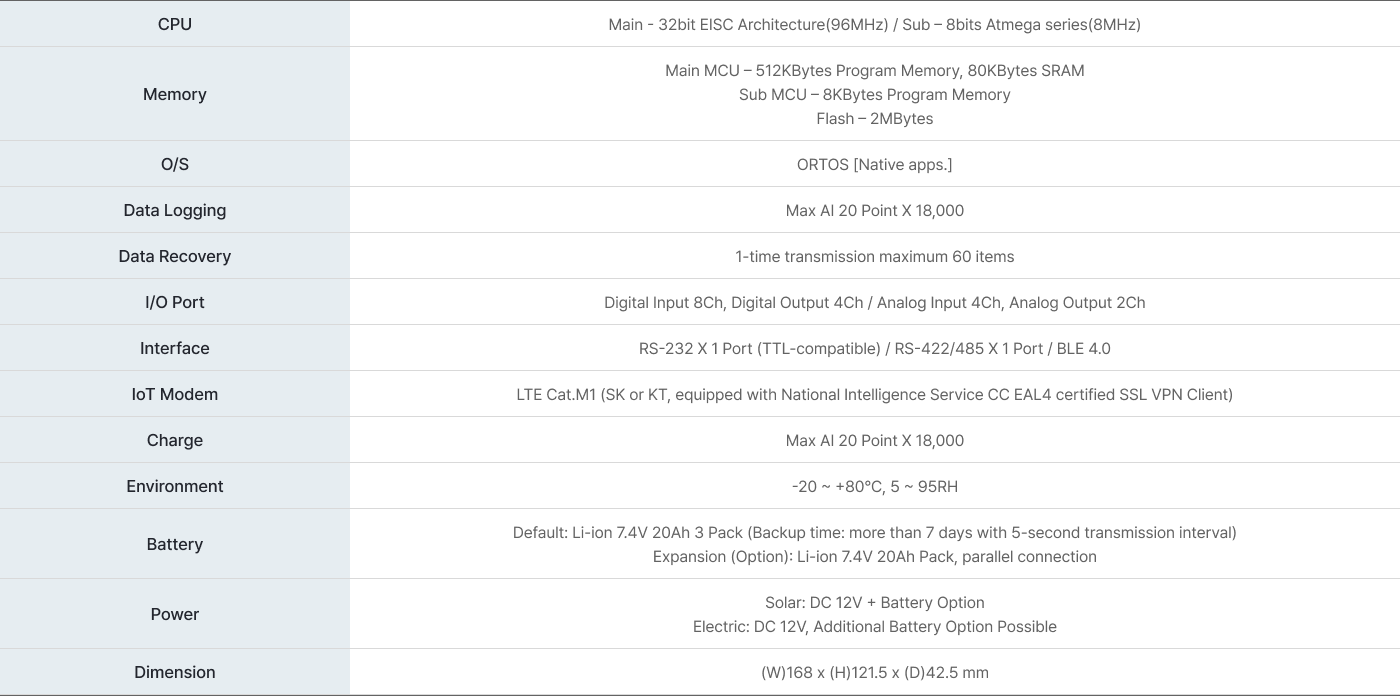

Specification
Dimension
Video
SMF IR200_IoT Low Power RTU
#RemoteControlDevice #BlockSystem #WaterEfficiencySystem
Explore the device image, specifications, and the smart device app 'ORTUS' of SMF IR200 for detailed information.
